Ground Surveillance Radar (GSR)

Product Type
Ground Surveillance Radar (GSR)
Deployment Modes
Man-Portable · Vehicle-Mounted · Fixed Post
Operational Use
Border Security · Battlefield Surveillance · Installation Protection
Operational Flexibility
Standalone or Networked Radar System

Overview

Ground Surveillance Radar (GSR) is a compact, lightweight, and man-portable radar system designed to detect and track targets moving on or close to the ground. It can intelligently classify and differentiate targets based on their size and movement characteristics, enabling reliable situational awareness in challenging environments. GSR is a cost-effective and versatile solution suitable for border security, battlefield surveillance, and the protection of civilian and military installations.

How GSR Operates

Ground Surveillance Radar (GSR) is engineered for rapid deployment and operational flexibility. It can be carried in backpacks by a two-person team, allowing coverage of areas that are difficult or impossible to reach by vehicles. The system can operate as a standalone unit or be deployed as part of a networked radar architecture, depending on mission requirements and terrain complexity.

Our Approach and Capabilities

GSR delivers mission-critical capabilities for ground surveillance operations:

Lightweight and compact design for easy transportation
Flexible deployment across mobile and static platforms
Seamless integration with existing surveillance ecosystems
Scalable architecture supporting multi-radar networks

Product Variants

The GSR family is available in three configurations, each optimized for different operational ranges and mission profiles.

Very Short Range Radar (VSR)

Frequency Band Ku Band
Operating Temp. –35°C to +55°C
Detection Range 2 km
Net Weight 8 kg
Azimuth Coverage 90°
Target Capacity Up to 100 targets
Elevation Coverage 30°
Protection Level IP67
Operation 24×7 Continuous
Classification AI-based

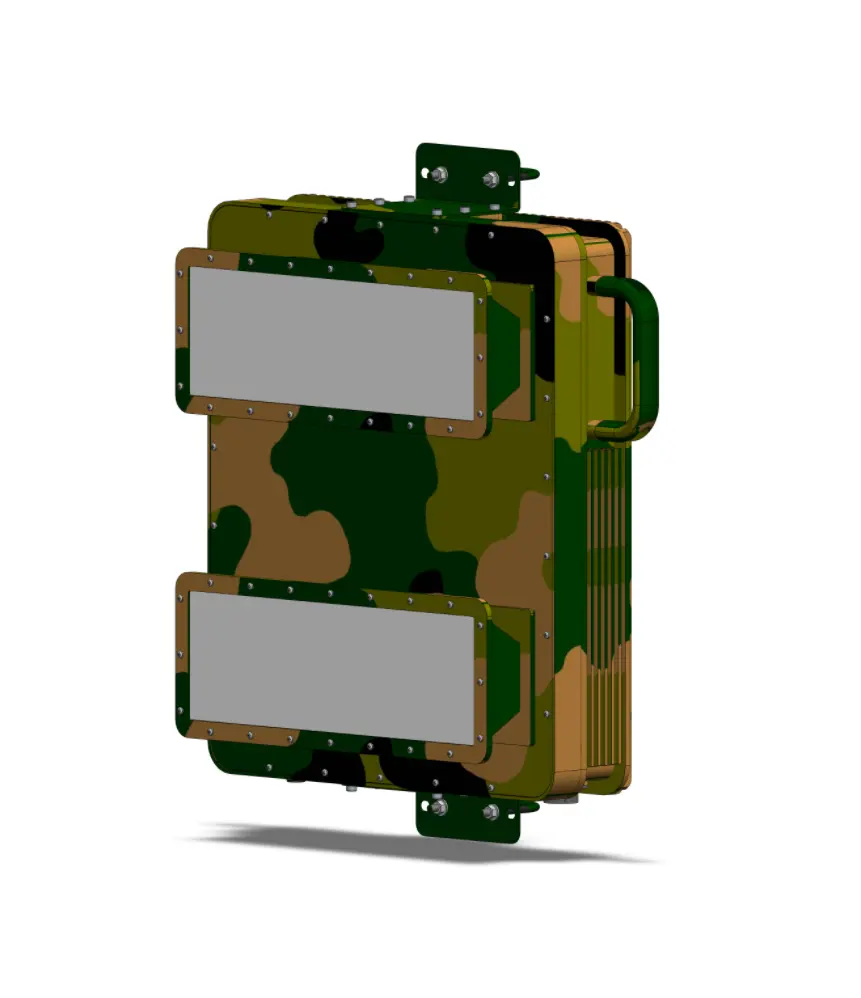

Very Short Range Ground Surveillance Radar

Short Range Radar (SR)

Frequency Band Ku Band
Operating Temp. –35°C to +55°C
Detection Range 10 km
Net Weight 10 kg
Azimuth Coverage 90°
Target Capacity Up to 300 targets
Elevation Coverage 30°
Protection Level IP67
Operation 24×7 Continuous
Classification AI-based

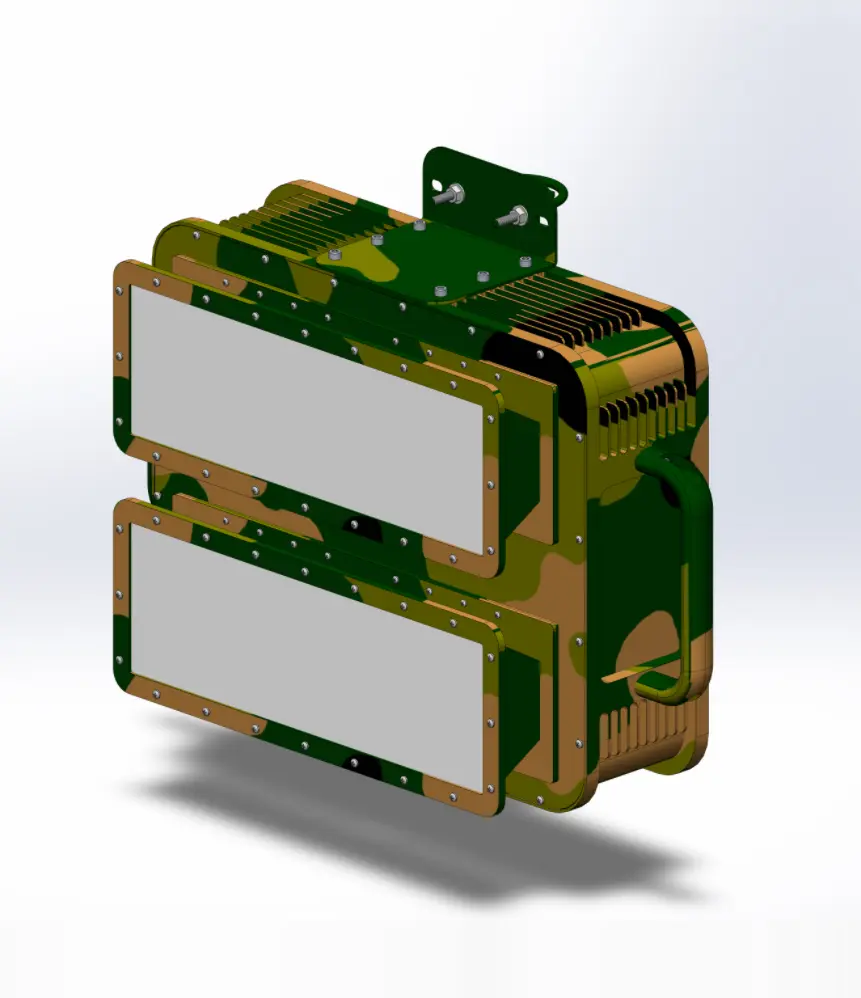

Short Range Ground Surveillance Radar

Medium Range Radar (MR)

Frequency Band Ku Band
Operating Temp. –35°C to +55°C
Detection Range 30 km
Net Weight 12 kg
Azimuth Coverage 90°
Target Capacity Up to 700 targets
Elevation Coverage 20°
Protection Level IP67
Operation 24×7 Continuous
Classification AI-based

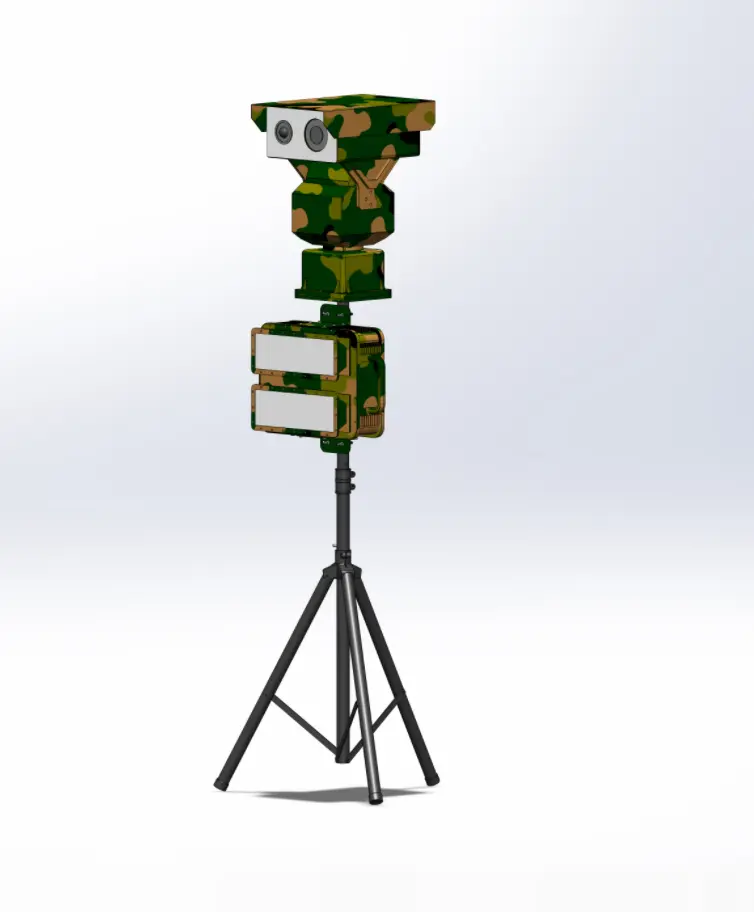

Medium Range Ground Surveillance Radar

Key Features

Compact & Lightweight Design

Ensures easy handling, transport, and rapid deployment.

Standalone or Networked Operation

Supports flexible mission configurations and scalable coverage.

Seamless System Integration

Easily integrates with existing surveillance and command systems.

Quick Setup & Ready for Use

Minimal installation time for fast operational readiness.

Vehicle-Mountable Capability

Adaptable for mobile surveillance and rapid repositioning.

Enhanced Coverage

Effectively monitors terrain difficult to access by vehicles.
